MIL-PRF-45307C(AT)
NOTES:
1. Peak value (P) = 40 g.
2. Nominal duration (T) = 11 ms.
3. The oscillogram shall include a time about 3T long with a pulse located approximately
in the center. The peak acceleration magnitude of the sawtooth pulse is P and it's
duration is T. The measured acceleration pulse shall be contained between the broken
line boundaries and the measured velocity change (which may be obtained by
integration of the acceleration pulse) shall be within the limits of Vi + 0.1 Vi, where Vi
is the velocity change associated with the ideal pulse which equals 0.5 PT. The
integration to determine velocity change shall extend from 0.4T before the pulse to
0.1T after the pulse.

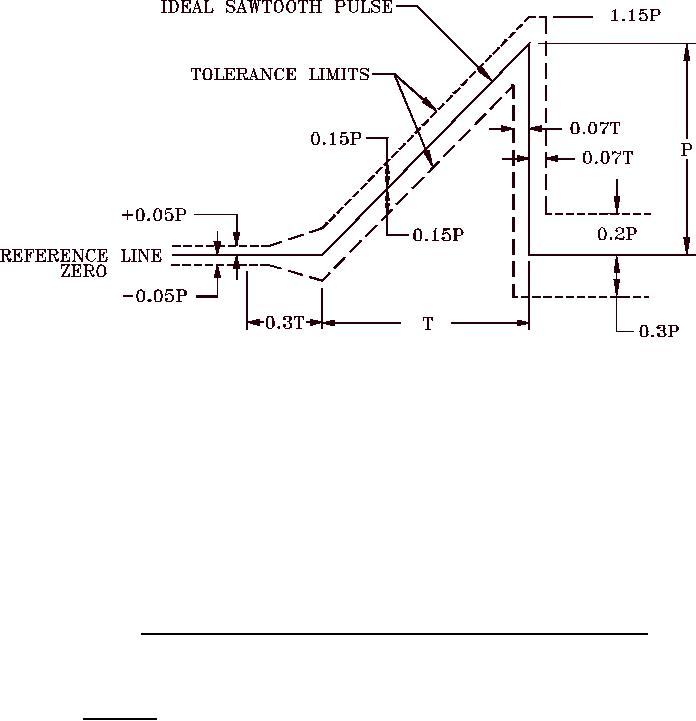

FIGURE 1. Terminal-peak sawtooth shock pulse configuration and tolerance limits.
5. PACKAGING
5.1 Packaging. For acquisition purposes, the packaging requirements shall be as specified
in the contract or order (see 6.2). When actual packaging of materiel is to be performed by DoD
personnel, these personnel need to contact the responsible packaging activity to ascertain requisite
packaging requirements. Packaging requirements are maintained by the Inventory Control Point's
packaging activity within the Military Department or Defense Agency, or within the Military
Department's System Command. Packaging data retrieval is available from the managing Military
Department's or Defense Agency's automated packaging files, CD-ROM products, or by
contacting the responsible packaging activity.
